Home > Products > IP Network PA System > 2U IP Broadcast Terminals

2U IP Broadcast Terminals

2U IP Broadcast Terminals

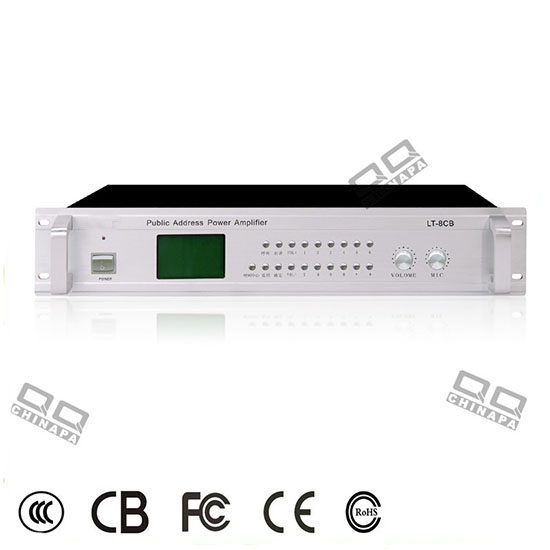

Product name:2U IP Broadcast Terminals
Category: IP Network PA System
Item:LT-8CB
Details:
 Function:
1. Non-dedicated network system solution.
2. Could be installed anywhere of the LAN ntework.
3. Economy network audio solution for multiple speaker applications.
4. With 3.4 inch LCD screen humanized operation interface.
5. Zone definition is done through software,each network audio adapter could be regard as one zone,or several
audio adapters could be taken as one zone,moreover,several zones could be defined as group for synchronous operation.
6.One Aux input and one local microphone input,both with volume control.
7. A remote control over IP address change and write in,volume control and local program selection from server.
8. Voice evacuation system with higher priority and local input with secondary priority could be customized.

Technical Parameter:
Model LT-8CB LT-8CE
Network Standard RJ45 Standard RJ45
Serial line Db9 Db9
Power AC220V/50HZ AC220V/50HZ
Output sensitivity & Source impedance 0.775V/470Ω RCA 0.775V/470Ω RCA
Input sensitivity & impedance MIC:10MV/600Ω 5.08
AUX:400MV/10KΩ 5.08
/
Power output 2*10W E
Standby power 1W 1W
Voice frequency 8Kbps-320Kbps 8Kbps-320Kbps
Frequency response 50HZ-15KHZ 50HZ-15KHZ
Sensitivity ≥70db ≥70db
Sampling rate 8K-48KHZ 8K-48KHZ
Frequency response MP3 MP3
Harmonic distortion ≤1% ≤1%
Transfer speed 10Mbps 10Mbps
Support agreement ARP,UDP,TCP/IP,ICMP,IGMP ARP,UDP,TCP/IP,ICMP,IGMP
Network delay ≤50ms ≤50ms
Working temperature -20℃-60℃ -20℃-60℃
Dimension(mm) 484*355*88 484*355*88
Weight(KG) 6.4 3.0

Your name:
Your E-mail: *
Message: *
Enter your inquiry details such as product name, color, size, MOQ, FOB, etc.
Code: *

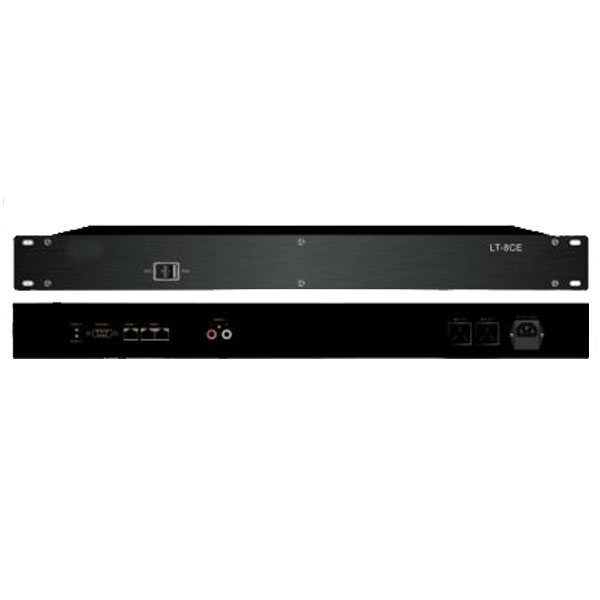

Previous:LT-8CE
