Feature:
1. A wireless conference system for audio discussion.
2. Easy installation and users-friendly operation.
3. Designed with IP/ID code, allowing unlimited numbers of microphones in usage at the same time.
4. The CPU correction and encryption functions ensure strong anti-interference from other electronic products.
5. 3 speech modes available: FIFO, Limited speech, Chairman only.
6. 1-4 microphones are active at a time.
7. Chairman unit has the priority to override all delegate units.
8. Each speaking unit is made with a big LCD screen for easy display.
9. Working distance within 80-100 meters.
10. With simple and elegant design for 19” rack case mounting.
11. Ideal for medium size conference rooms, boardrooms, schools, etc
Controller Specification
|
Model
|
TSE-05
|
Power supply
|
DC 12V-17V
|
Sensitivity
|
-105dBm
|
S/N Ratio
|
>90dB
|
T.H.D
|
<0.05%Db
|
Max.deviation range
|
±45KHz
|
Working distance
|
about 100meter
|
Power
|
6.5W
|
Size
|
480*220*85mm
|
Weight
|
5.5KG
|
Microphone Specifiaction
|
Model
|

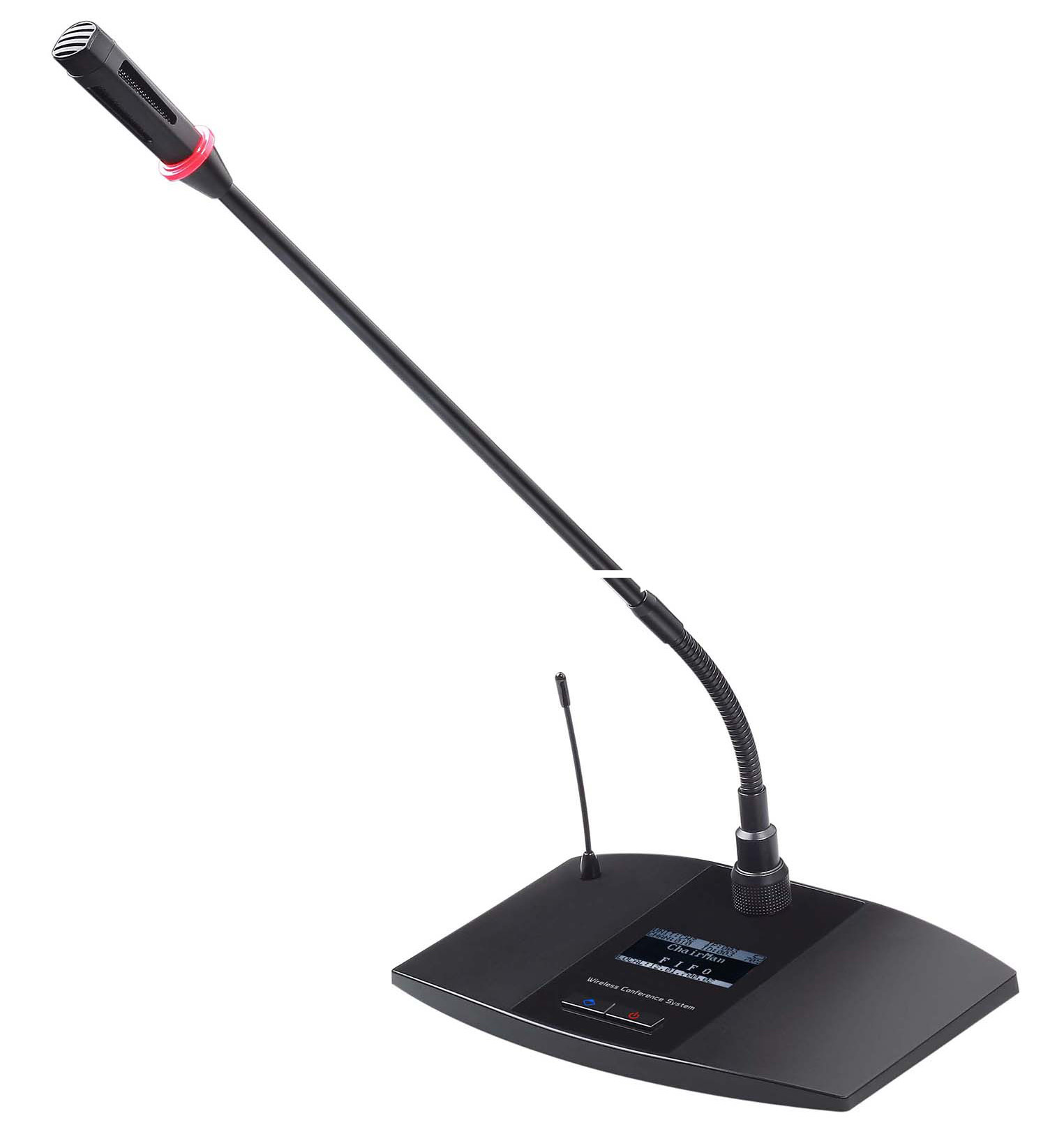

TS-30C ( Chairman Unit )
|

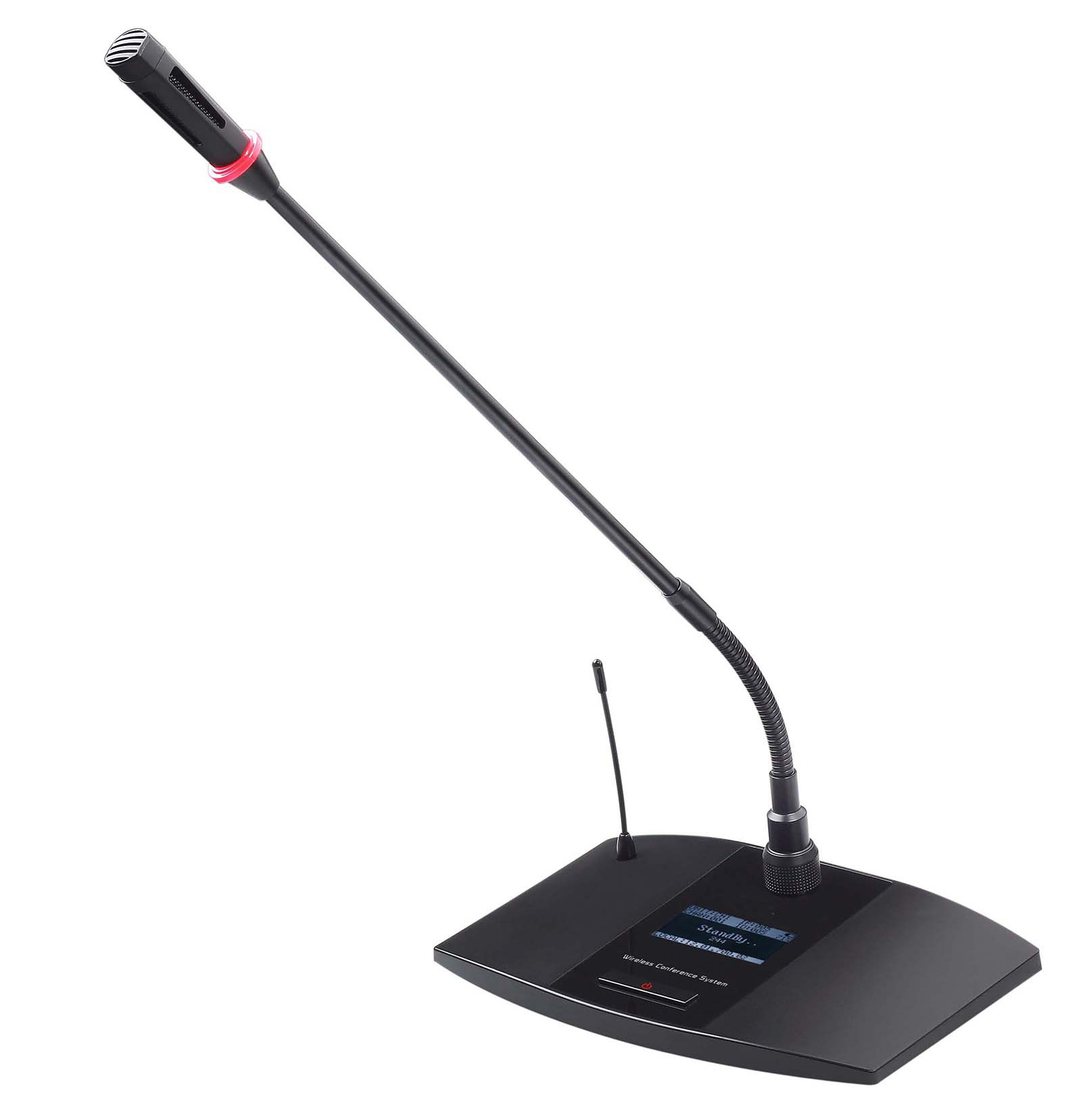

TS-30D ( Delegate Unit )
|
Power supply
|
Built-in 3.7V lithium battery
|
Built-in 3.7V lithium battery
|
Emission power
|
10mW
|
10mW
|
Maximum frequency deviation
|
±45KHz
|
±45KHz
|
Element
|
condenser, single direction
|
condenser, single direction
|
Sensitivity
|
-45±2dB@1KHz
|
-45±2dB@1KHz
|
Frequency response
|
20Hz-18KHz
|
20Hz-18KHz
|
Power consumption
|
130mA
|
130mA
|
Weight
|
750g
|
750g
|
Optional color
|
black /silver
|
black /silver
|
