Home > Products > Microphone Series > UFH Wireless Microphone System

UFH Wireless Microphone System

Product name：UFH Wireless Microphone System

Category： Microphone Series

Item：UFD-12/TSH-09/TSH-01

Details：

Receiver Parameter
Model	UHD-12
Channel	Dual Channel
Frequency Range	UHF 600-790MHz
Modulation	FM
Oscillation mode	PLL Synthesized
S/N Ratio	>90dB
T.H.D （1 Khz）	<0.5%
Display	LCD
Power Supply	DC 12-18V
Consume Power	5W
Material	Iron case/ aluminum panel
Operation Distance	50 - 80 M
Weight	1.9kg
Dimension	210 x 108 x 45mm

Microphone Parameter

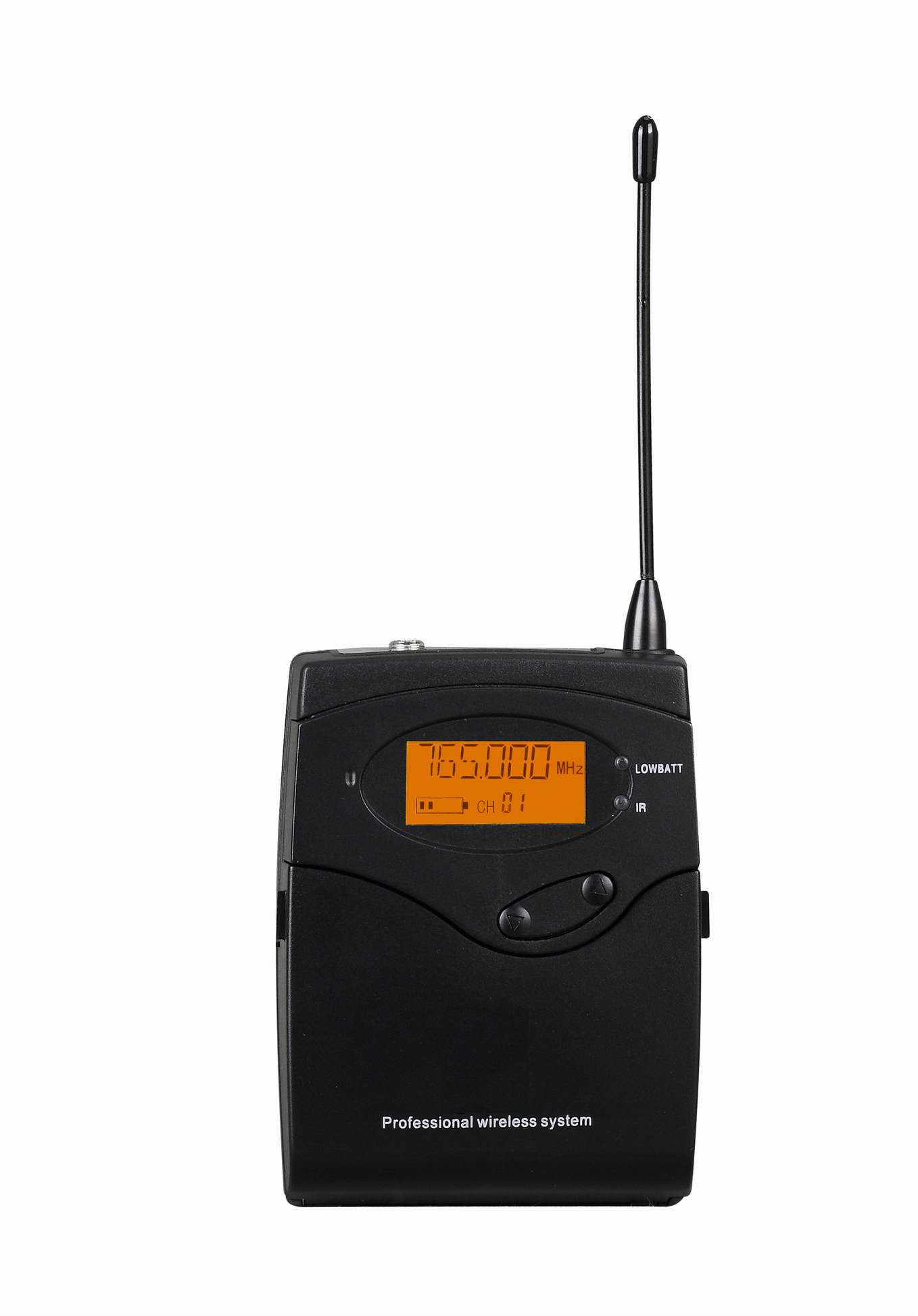

Model	TSH-09 ( Handheld )	TSB-01 ( Bodypack )
Frequency range	UHF 600-790MH	UHF 600-790MH
Freq Stability	<0.002%	<0.002%
Power output	10 -30 mW	100 mA
Element	Cardiod dynamic	Cardiod condenser
Battery	2x1.5V AA Size	2x1.5V AA Size
Battery Life:	8~20 hours	8~15 hours
Weight	0.36Kg	100g
Dimension	ф36*254mm	110 x 63 x18 mm
