Home > Products > Microphone Series > Wired Conference MIC System ( Discussion )

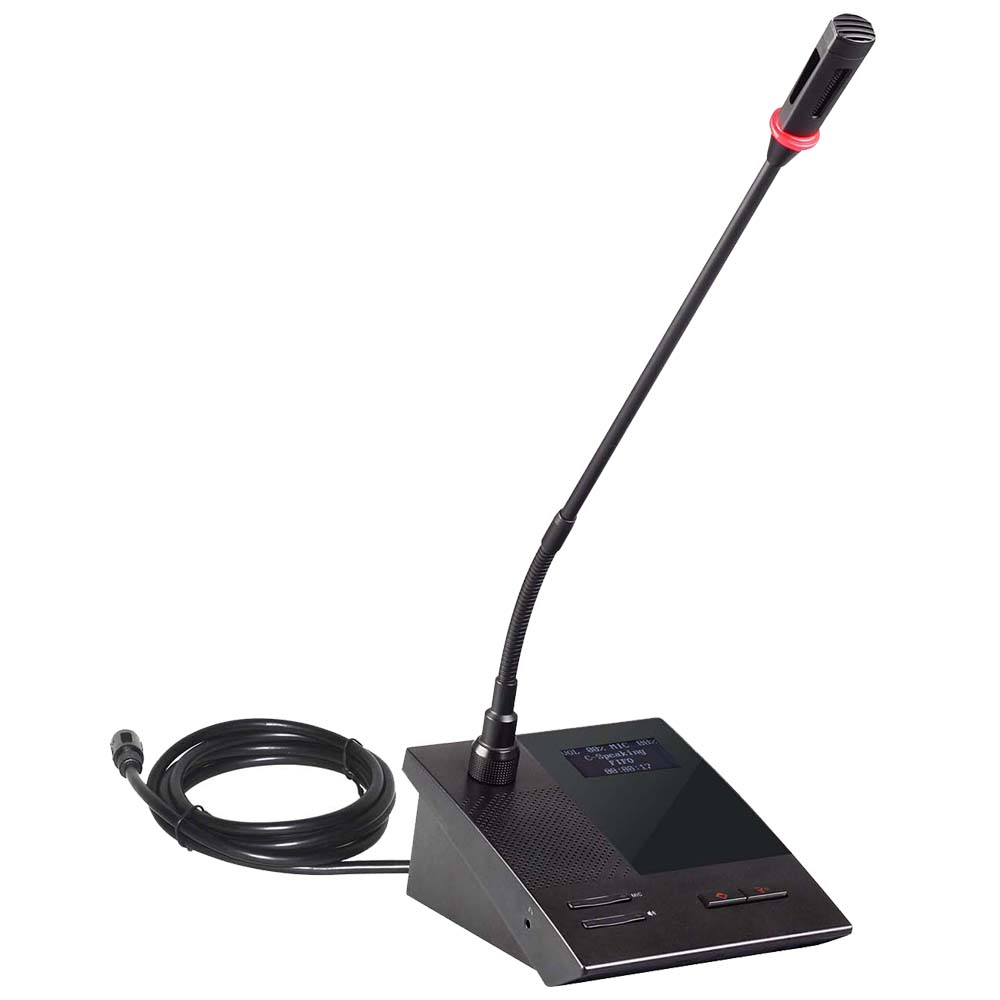

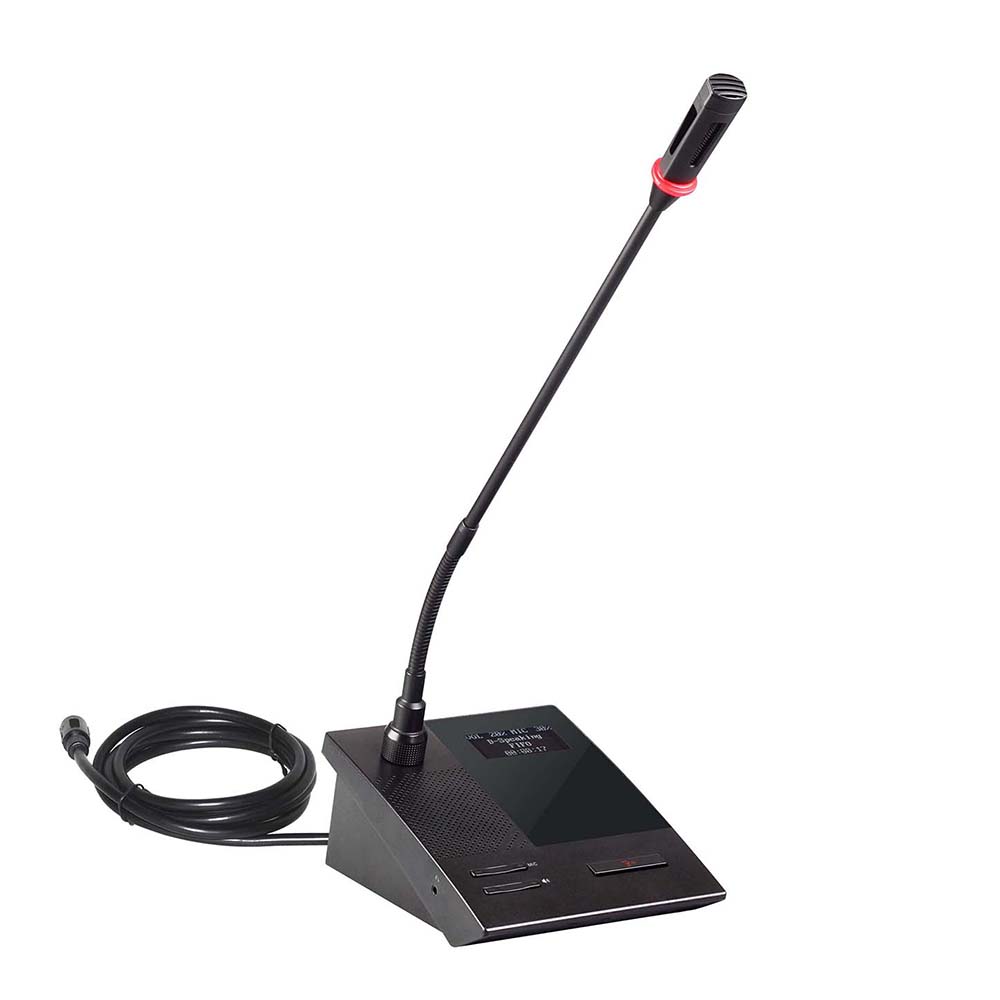

Wired Conference MIC System ( Discussion )

Wired Conference MIC System ( Discussion ) Wired Conference MIC System ( Discussion ) Wired Conference MIC System ( Discussion )
Product name:Wired Conference MIC System ( Discussion )
Category: Microphone Series
Item:TST-100MR/TST-20C/TST-20D
Details:

Feature:

1. A compact wired conference system ideal for audio discussion application.

2. Controlled by a few buttons, it is users-friendly.
3. 6 speaking modes available: Chairman, FIFO, LIFO, LIMIT, FREE, and Responder.
4. 1,3,6 or all units can be chosen to be active at the same time.
5. Each controller can support 60 microphone units, or maximum 255 units via extension equipment.
6. Each microphone units are equiped with speakers for background music.
7. Chairman units have priority function to override delegate units.
8. Multi-functional and high security
9. Ideal for mid-size conference application such as boardrooms, conference halls, house of worship, universities, etc.

Controller Specification
Model
TST-100MR
Frequency response
AC 220V±10% 50Hz
Rated voltage
100Hz-12.5Hz

Output impedance
REC: 200Ω  LINE:200Ω
BALANCE: 300Ω
UNBALANCE: 400Ω
Input impedance
LINE:50KΩ   PBIN:50KΩ
S /N Ratio
100dB (1KHz THD1%)
Size
 480*44*220 mm
Accessory
 10m 8P shielded line

Microphone Specifiaction
Model
TST-20C ( Chairman Unit )
TST-20D  ( Delegate Unit )
Element
condenser
condenser
Polar pattern
one direction
one direction
Frequency response:
50Hz-1700Hz
50Hz-1700Hz
Sensitivity
-45±2dB@1KHz
-45±2dB@1KHz
Input voltage
 DC 9V(powered by host)
 DC 9V(powered by host)
Min input impedance
1KΩ
1KΩ
S /N Ratio
68dB(A)
68dB(A)
Output connector
8P terminal
8P terminal
Input and output wire
2.1M 8P shielded line
2.1M 8P shielded line
Mic length
290mm
290mm
Size
170*130*68mm
170*130*68mm
