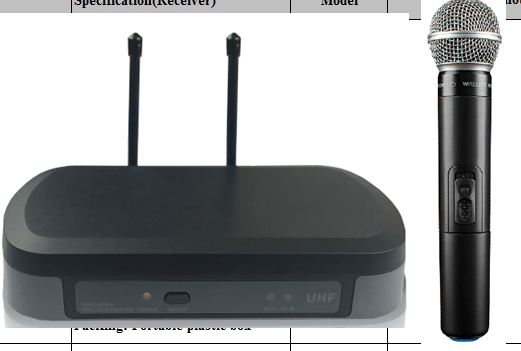

UHF Wireless Conference System with 2 Handheld mic

Product name：UHF Wireless Conference System with 2 Handheld mic

Category： Microphone Series

Item：DF-20(D-02)

Details：

Specification(Receiver)
Model: DF-20(D-02)
Chip Technology，digial system
Channels: Dual Channel
Frequency Range: UHF 500-880 MHz Frequency stability: 10ppm
S/N Ratio: >80dB
Spurious rejection: >80 dB
Sensitivity: -100dBm(S+N)/N = 26 dB Power Supply: DC 12-18V
Consume Power: 3W Operation Distance:50 M
Weight:1 kg
Dimension: 175 x 108 x 40mm
Packing: Portable plastic box

Specification( Transmitter)
Model: D-02
Frequency range: UHF 500-880 MHz Freq Stability: <0.002%
Power output: 10 mW
Element：Cardiod dynamic
Battery:2x1.5V AA Size
Battery Life: 5-7 hours
Weight: 0.36Kg
Dimension:ф52*236mm
