Home > Products > Power Amplifier > Pure Power Amplifier(280W-1000W)

Pure Power Amplifier(280W-1000W)

Pure Power Amplifier(280W-1000W) Pure Power Amplifier(280W-1000W)
Product name:Pure Power Amplifier(280W-1000W)
Category: Power Amplifier
Item:PA-280 - PA-1000
Details:
 Function

1. Transformer isolated 100V,70V and 4-16Ohms speaker outputs,balanced,no grounding,two channel or four channel for your choose.

2. 5 LED indicators for status display.

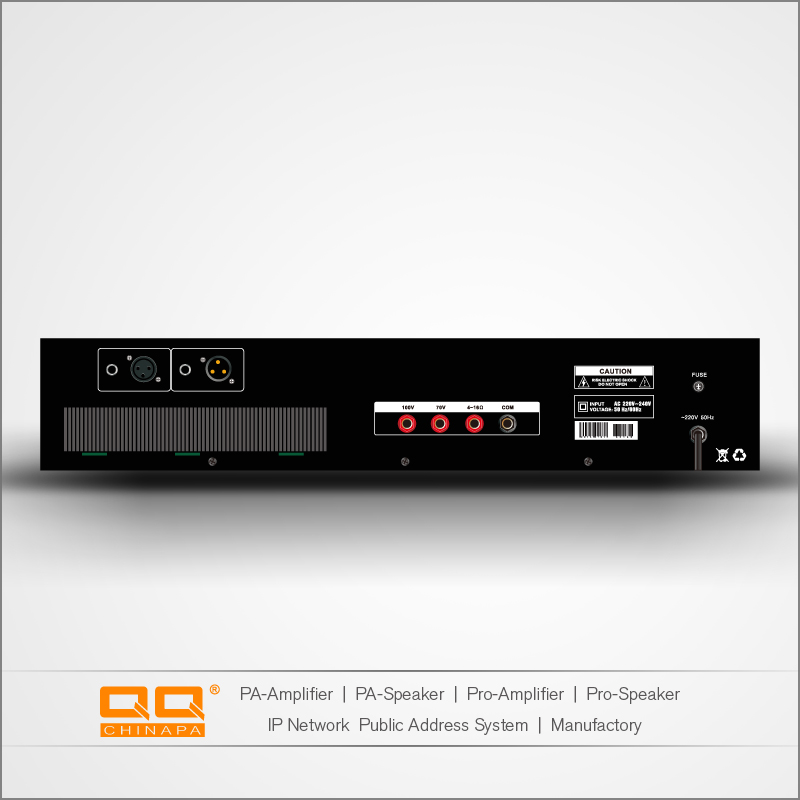

3. XLR socket and 6.35mm jack for amplifier link.

4. Output circuit shorting protection and display,short-circuit warning and protection,over-heat warning.

5. Series amplifiers of high output power available.

6.With Limiter function, music without distoration.
Technical Parameters

Model PA-280 PA-380 PA-480 PA-680H LPA-880 PA-1000
Line voltage 70v-100v 70v-100v 70v-100v 70v-100v 70v-100v 70v-100v
Impedance 4-16Ω 4-16Ω 4-16Ω 4-16Ω 4-16Ω 4-16Ω
Rated power 280w 380w 480w 680w 880w 1000w
Zone / / / / / /
Dimension(mm) 435*390*90 435*390*90 435*390*90 435*390*90 435*390*90 435*390*90
Weight(KG) 13 14.5 17.26 18.5 21 21.5
Gross wight(KG) 14.28 15.78 18.24 19.78 21.28 22.78
