Home > Products > Power Amplifier > Pure Power Amplifier(4000w-12000w)

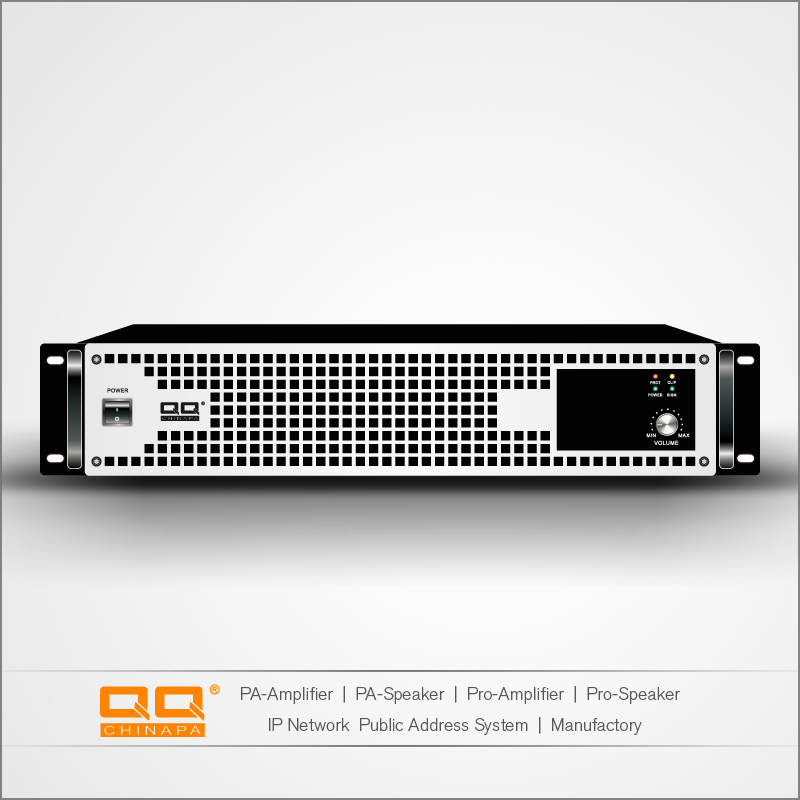

Pure Power Amplifier(4000w-12000w)

Product name：Pure Power Amplifier(4000w-12000w)

Category： Power Amplifier

Item：PA-2*2000/PA-2*4000/PA-2*6000

Details：

Features:
1. Transformer isolated 100V, 70V and 4-16 Ohms speaker outputs, balanced, no grounding.Two channel or Four channel.
2. 5 LED indicators for status display.
3. XLR socket and 6.35 mm jack for amplifier link.
4. Output circuit shorting protection & display, Short-circuit warning and protection, over-heat warning.
5. Series amplifiers of high output power available.

Model	*PA-20002**	*PA-40002**	*PA-60002**	*PA-16004**	*PA-22004**
Frequency response	20Hz~20Khz	20Hz~20Khz	20Hz~20Khz	20Hz~20Khz	20Hz~20Khz
Sensitivity	230mv/15mv	230mv/15mv	230mv/15mv	230mv/15mv	230mv/15mv
Sensitivity	＞80db	＞80db	＞80db	＞80db	＞80db
Harmonic distortion	＜0.3%	＜0.3%	＜0.3%	＜0.3%	＜0.3%
Rated power	2*2000W	2*4000W	2*6000W	4*1600W	4*2200W
Fuse	F10AL	F10AL	F10AL	F10AL	F10AL
Line voltage	AC220V/50HZ	AC220V/50HZ	AC220V/50HZ	AC220V/50HZ	AC220V/50HZ
Weight(KG)	10.2	10.2	10.2	10.2	10.2
Gross weight(KG)	13.64	13.64	13.64	13.64	13.64
Dimension(mm)	48048090	48048090	48048090	48048090	48048090

Your name：
Your E-mail：	*
Message：	* Enter your inquiry details such as product name, color, size, MOQ, FOB, etc.
Code：	*

Previous：PA-280 - PA-1000
Next：PA-1000-PA-4000
